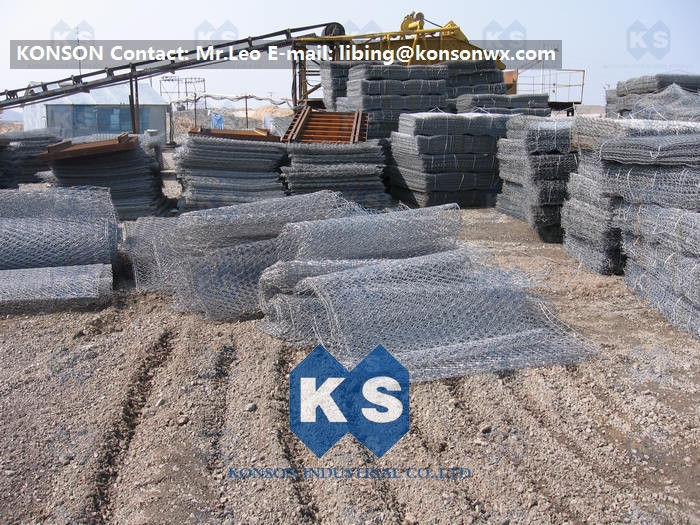

Custom Hexagonal Wire Netting Coated Polyethylene Gabion Mesh Box For Flood Bank
GABIONS (Higher than 1m in height) and MATTRESSES (Less than 1m in height) consist of rectangular units, fabricated from a double-twisted hexagonal mesh.
Filled with stones, gabions become large, flexible and permeable elements from which a broad range of structures may be built. Gabions and mattresses are widely used for hydraulic and geo- technical control such as retaining walls, riverbank protections, weirs, channel linings etc.
Gabion also can be manufactured in the following material:
1.Electro galvanized Gabion box
Zinc coating: 220g/m2, 260g/m2, 275g/m2, 290g/m2
2.Hot dip galvanized Gabion Box
3.Galfan Gabion Box (95% Zinc +5% Al )
4.PVC/PE coated Gabion Box
Gabions sizes:2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m,
4m x 1m x 0.5m and customize design is available.
Wire dia :2.2mm, 2.7mm, 3.4mm, 3.9mm and etc.
Hole Size:60x80mm, 80x100mm, 100x120mm, 120x150mm
1.Control and guide of water or flood
2.Flood bank or guiding bank
3.Preventing of rock breaking
4.Water and soil protection
6.Strengthening structure of soil
7.Protection engineering of seaside area.
