Large Gabion Mesh Manufacturing Hexagonal Wire Netting Machine for Making Gabion Boxes

Certification
China Konson Industrial Co., Ltd. certification
We got three machines form KONSON,the machine is good quality and they provide service of installation and debugging.

—— Hassan Fehmi from Turkey

I imported 80,000 sets gabion boxes.The products and marketing team are both excellent.The gabion got a good mark in quality test.

—— Soriane Morchedi from Algeria

I'm Online Chat Now

Large Gabion Mesh Manufacturing Hexagonal Wire Netting Machine for Making Gabion Boxes

Large Gabion Mesh Manufacturing Hexagonal Wire Netting Machine for Making Gabion Boxes
Large Gabion Mesh Manufacturing Hexagonal Wire Netting Machine for Making Gabion Boxes

Large Image :  Large Gabion Mesh Manufacturing Hexagonal Wire Netting Machine for Making Gabion Boxes

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Konson
Certification: CE, ISO9001, SGS, ASTMA, EN, BS standard.
Model Number: KS100120-4.0
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Discuss in mail
Packaging Details: One 40'Open Top Container, wooden pallet, as your design
Delivery Time: within 30 days in receiving prepayment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
Product Name: Wire Mesh Machine MESH SIZE: 100mm X 120mm...
MAX.WIRE: 3.5mm... PRODUCING RATE: >3.5 M/min...
Option: Automatic Stop System Feature: High Efficiency
High Light:

hexagonal wire mesh machine

,

hexagonal wire machine

Coiling Hexagonal Wire Netting Machine For Galvanised Wire Mesh Wire 100mm x 120mm





1. Introduction

The KS series gabion mesh machines include four main standard parts: Main netting machine, winding machine, wire tension device and spiral coiling machine, it can produce gabions of various widths and mesh sizes. Konson gabion machine strict with CE certification has been exported to more than 40 countries before. It is our honor to provide the machine to you!

KS series machine has the feature of rational design, simple structure, smooth running, excellent performance, reliable operation and convenient maintenance.

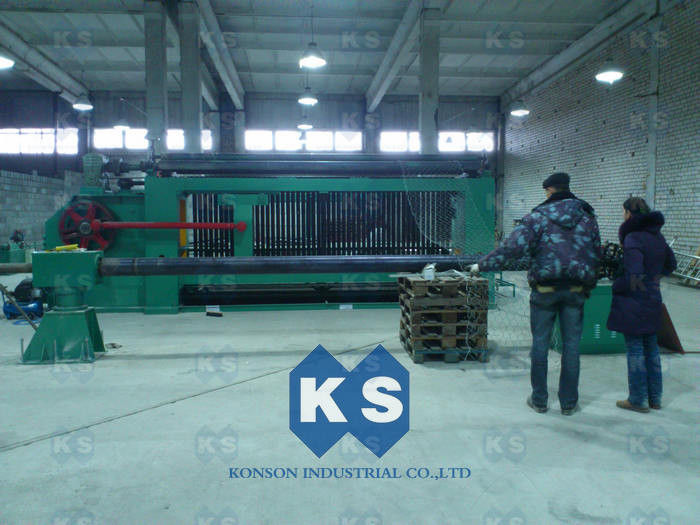

Large Gabion Mesh Manufacturing Hexagonal Wire Netting Machine for Making Gabion Boxes 0

100x120mm Galvanised Wire Mesh Wire Coiling Hexagonal Wire Netting Machine Manufacturers.



2.Specification:

MODEL

MESH SIZE

MAX.WIRE DIA.

MAX WIDTH

PRODUCING RATE

KS6080-2.4

60X80

mm

3.0mm

2400mm

>3.3 m/min

KS6080-3.2

3.5mm

3200mm

KS6080-4.0

3.5mm

4300mm

KS80100-2.4

80X100

mm

3.5mm

2400mm

>3.5 m/min

KS80100-3.2

3.5mm

3200mm

KS80100-4.0

4.0mm

4300mm

KS100120-2.4

100X120

mm

3.5mm

2400mm

>3.5 m/min

KS100120-3.2

3.5mm

3200mm

KS100120-4.0

4.0mm

4300mm

KS120150-2.4

120X150

mm

4.0mm

2400mm

>3.8 m/min

KS120150-3.2

4.0mm

3200mm

KS120150-4.0

4.0mm

4300mm
