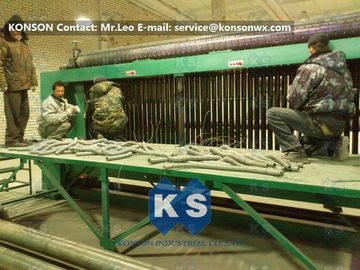

Large Hexagonal Wire Mesh Welding Machine / Gabion Machine for 3.5mm Wire 22kw
KONSON brand Gabion machine is designed to produce gabion mesh and reno mattress of various widths and mesh sizes. Konson brand Gabion Machine is one kind of special equipment for twisting metal wire hexagonal mesh with big wire, large mesh and wide breadth.
1. Mesh sizes: 80X100mm
2. Twist model: double twist & three twist
3. Max. netting width: 4300mm
4. Max. galvanized wire dia.: 3.9mm
5. Max PVC wire diameter: 4.9mm
6. Theoretic output: 255m/hr
7. Power: 22Kw
8. Dimensions: 8100 x 1400 x 2400mm
9. Weight: 15MT
10. Automatic oil system
11. Automatic stop system
12. Infrared ray safety system
All of the core parts of machines are processed by our own factory, the quality can be ensured.
Advantages of our machine:
A1. CE certificated.
A2. QC system & timely delivery.
A3. New drive mode.
A4. Automatic oil system.
A5. Overload protect clutch.
A6. High-efficiency: theoretic output = 3.5m/min.
A7. Turbine protection system (Option).
A8. Infrared ray safety (Option).
A9. Automatic stop system (Option).
A10. All of the core parts of machines are processed by our own factory, so the quality can be ensured.
A11. KONSON offer better after-sale service. We can provide 12 months guarantee for all the equipments, we will arrange our engineer to install the machines in your factory and teach your workers how to produce, we will also send accessories and spare parts without any cost.
