PLC Control System Hexagonal Wire Netting Machine 95% Aluminium Alloy Wire 22kw

PLC Control System Hexagonal Wire Netting Machine 95% Aluminium Alloy Wire 22kw
PLC Control System Hexagonal Wire Netting Machine 95% Aluminium Alloy Wire 22kw PLC Control System Hexagonal Wire Netting Machine 95% Aluminium Alloy Wire 22kw

Large Image :  PLC Control System Hexagonal Wire Netting Machine 95% Aluminium Alloy Wire 22kw

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Konson
Certification: CE, ISO9001, SGS, ASTMA, EN, BS standard.
Model Number: KS120150-4.0
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Discuss in mail
Packaging Details: 1x40 feet Open Top Container, wooden pallet, as your design
Delivery Time: within 30 days in receiving prepayment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
Power: 22kw System: PLC Control System
Speed: 3.5m/min Application: Gabion Wire Mesh,gabion Cage
PVC Wire: Available Type: Fully Automatic
Working Width: 4300mm Color: Customer Design
Wire Diameter: 1.6-4.0mm After-sales Service Provided: Video Technical Support,Field Maintenance And Repair Service
High Light:

hexagonal wire mesh machine

,

hexagonal wire machine



PLC Control System Hexagonal Wire Netting Machine 95% Aluminium Alloy Wire 22kw





Hexagonal Wire Netting Machine​ Introduction:

KONSON hexagonal wire netting machine is designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.



KONSON exported gabion machine to Russia,Bosina,Poland,Croatia,Bulgaria,Algeria,Morocco,Ethiopia,Venezuela and etc.





Hexagonal Wire Netting Machine :

1. PLC + Touch screen, easy operation.
2. Servo motor transmission, running fast, shock-resistance, smooth running, low noise, much better than mechanical transmission. 150m/h
3. Inching / Single-step control button.
4. Grid counter + alarm to stop machine (when wire/ mesh broken, or preset numbers into zero).
5. Automatically wind up mesh into rolls.
6. Automatic central lubrication system to reduce machine damages.
7. The machine can weave several mesh rolls at same time for different mesh width.





Features

1. One set of main machine can only produceone mesh size.
2. One set of main machine can make severalwire diameters.
3. You can weave two or three net with thesame machine.
4. Adopt the principle of clockwise and counterclockwise twisting;no need to makeiron wire spring form to increase productivity





Specification

MODEL MESH SIZE MAX.WIRE DIA. MAX WIDTH PRODUCING RATE
KS6080-2.4

60X80

mm

3.0mm 2400mm >3.3 m/min
KS6080-3.2 3.5mm 3200mm
KS6080-4.0 3.5mm 4300mm
KS80100-2.4

80X100

mm

3.5mm 2400mm >3.5 m/min
KS80100-3.2 3.5mm 3200mm
KS80100-4.0 4.0mm 4300mm
KS100120-2.4

100X120

mm

3.5mm 2400mm >3.5 m/min
KS100120-3.2 3.5mm 3200mm
KS100120-4.0 4.0mm 4300mm
KS120150-2.4

120X150

mm

4.0mm 2400mm >3.8 m/min
KS120150-3.2 4.0mm 3200mm
KS120150-4.0 4.0mm 4300mm

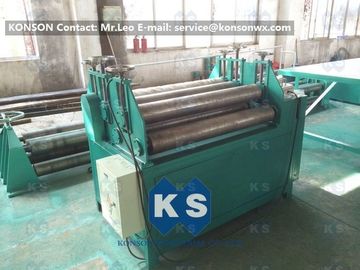

PLC Control System Hexagonal Wire Netting Machine 95% Aluminium Alloy Wire 22kw 0



The KS series gabion mesh machines include four main standard parts: Main netting machine, winding machine, wire tension device and spiral coiling machine, it can produce gabions of various widths and mesh sizes.



Konson gabion machine strict with CE certification has been exported to more than 40 countries before. It is our honor to provide the machine to you!



KS series machine has the feature of rational design, simple structure, smooth running, excellent performance, reliable operation and convenient maintenance.



Advantages:

A1. CE certificate.
A2. QC system & timely delivery.
A3. New drive mode.
A4. Automatic oil system.
A5. Overload protect clutch.
A6. High-efficiency: theoretic output = 4.15m/min.
A7. Turbine protection system (Option).
A8. Infrared ray safety (Option).
A9. Automatic stop system (Option).
A10. All of the core parts of machines are processed by our own factory, so the quality can be ensured.
A11. KONSON offer better after-sale service. We can provide 12 months guarantee for all the equipments, we will arrange our engineer to install the machines in your factory and teach your workers how to produce, we will also send accessories and spare parts without any cost.

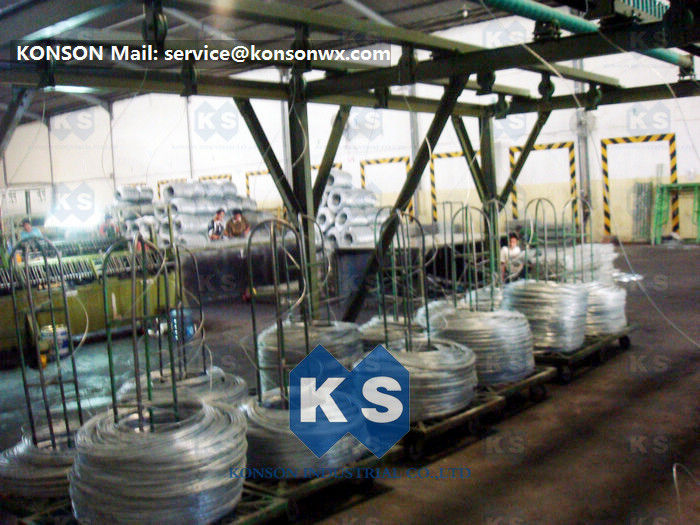

PLC Control System Hexagonal Wire Netting Machine 95% Aluminium Alloy Wire 22kw 1



Installation and service:

We can dispatch our engineers to your factory for the installation of the machine and the training. About the detailed information of after-sales service, you can contact with our sales personnel.
