Protecting Mesh Gabion Machine Simple Construction Corrosion Resistance

Certification
China Konson Industrial Co., Ltd. certification
We got three machines form KONSON,the machine is good quality and they provide service of installation and debugging.

—— Hassan Fehmi from Turkey

I imported 80,000 sets gabion boxes.The products and marketing team are both excellent.The gabion got a good mark in quality test.

—— Soriane Morchedi from Algeria

I'm Online Chat Now

Protecting Mesh Gabion Machine Simple Construction Corrosion Resistance

Protecting Mesh Gabion Machine Simple Construction Corrosion Resistance
Protecting Mesh Gabion Machine Simple Construction Corrosion Resistance Protecting Mesh Gabion Machine Simple Construction Corrosion Resistance

Large Image :  Protecting Mesh Gabion Machine Simple Construction Corrosion Resistance

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Konson
Certification: CE, ISO9001, SGS, ASTMA, EN,BS Standard.
Model Number: KS80100-3.2
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Discuss in mail
Packaging Details: One 40'Open Top Container, wooden pallet, as your design
Delivery Time: within 30 days in receiving prepayment
Payment Terms: L/C, T/T
Supply Ability: 10Sets per Month
Detailed Product Description
Features: Simple Construction Corrosion Resistance Product Name: Gabion Box Machine
MOTOR POWER: 17 Kw Feature: Easily Assembled
Hole Shape: Hexagonal,Square Usage: Protecting Mesh
Application: Gabions,Cages,plant Protection Surface Treatment: Galvanized Etc.
High Light:

wire mesh machines

,

wire mesh welding machine

Protecting Mesh Gabion Box Machine Simple Construction Corrosion Resistance






Gabion Box Machine​ Main machine

Netting straightening machine

Netting cutting machine/mesh cutting machine/mesh sheet cutting machine

Edge winding up machine/gabion mesh crimped machine

Gabion packing machine/Gabion mesh press machine

Wire pay off system

PVC coating machine/PVC coating line/ PVC coated machine
Wire straightening and cutting machine/Wire rod straightening and cutting machine




Gabion Box Machine​ Brief Introduction

A set of gabion box machine includes four main parts: Mesh weaving machine, roll mesh machine, coiling spring machine, warping machine.



1. The gabion box machine is widely used in oil, construction, raising, chemical industry, warming piping and

etc. It is also used in fence, apartment and greening.

2. The mesh making machine can be used in protect seawall, hillside, road, bridge and civil engineering.

3. It is one of the best against flooding materials.





Gabion Box Machine

Gabion Box Machine which is ideal for creating different types of boxes in diverse shapes and sizes. It is used in various packaging industries due to its high performance efficiency and timely execution.



In addition to this, the said Gabion Box Machine is robust in construction and provides simple operations, smooth functioning, longer functional life, high strength etc.



This machine requires less power consumption and low maintenance. It is known for its anti-corrosion nature, dimensional accuracy and seamless finishing. You can avail this in different specifications and designs as per the requirement.



Gabion Box Machine​ Specification:

MODEL MESH SIZE MAX.WIRE DIA. MAX WIDTH PRODUCING RATE MOTOR POWER
KS6080-2.4 60X80mm 3.0mm 2400mm >4.8 m/min 15 kw
KS6080-3.2 2.8mm 3200mm 18.5 kw
KS6080-4.0 2.8mm 4000mm 22 kw
KS80100-2.4 80X100mm 3.0mm 2400mm >4.9 m/min 17 kw
KS80100-3.2 3.0mm 3200mm 17 kw
KS80100-4.0 3.0mm 4000mm 18.5 kw
KS80100-4.3 3.4mm 4300mm 19 kw
KS100120-2.4 100X120mm 3.2mm 2400mm >4.3 m/min 19 kw
KS100120-3.2 3.2mm 3200mm 19 kw
KS100120-4.0 3.0mm 4000mm 19 kw
KS120150-2.4 120X150mm 4.0mm 2400mm >4.4 m/min 17 kw
KS120150-3.2 4.0mm 3200mm 19 kw
KS120150-4.0 3.5mm 4000mm 19 kw





Range of supply

Main netting machine 1 Set
Winding machine 1 Set
Wire tension device 1 Set
Air compressor 1 Set
Standard spareparts 1 Set
Lubrication pump 1 Set

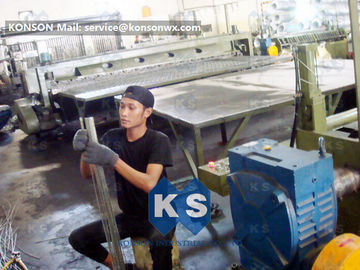

The model in picture is automatic gabion mesh machine
Protecting Mesh Gabion Machine Simple Construction Corrosion Resistance 0

Protecting Mesh Gabion Machine Simple Construction Corrosion Resistance 1

We can manufacture especial size as your request, User satisfaction is our unremitting goal!
