PVC Coated Stone Gabion Box & Gabion Baskets Retaining Wall & Hexagonal Wire Mesh

PVC Coated Stone Gabion Box & Gabion Baskets Retaining Wall & Hexagonal Wire Mesh
PVC Coated Stone Gabion Box & Gabion Baskets Retaining Wall & Hexagonal Wire Mesh

Large Image :  PVC Coated Stone Gabion Box & Gabion Baskets Retaining Wall & Hexagonal Wire Mesh

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Konson
Certification: ISO9001,SGS,CE,ASTMA97597,EN 10223 standard.
Model Number: KS-GP
Payment & Shipping Terms:
Minimum Order Quantity: 1000 sqm
Price: Discuss in mail
Packaging Details: weave bag,flat bundle,binding with steel strape or strands,some rolls.as your design.
Delivery Time: 10 days for 1x40 feet FCL
Payment Terms: L/C,T/T
Supply Ability: 12000 sqm per day
Detailed Product Description
High Light:

gabion mattress

,

galvanized gabion

Woven Wire Mesh Galvanised Wire Mesh PVC Gabions Coated Stone Basket



pvc coated gabion is manufactured by PVC coating Line.Firstly, coating polyvinyl chloride on mesh wire and straighten the wire.Secondly, pvc coated gabion is made by gabion machine.
Wire diameter varies with the hexagonal nettings.For hexagonal wire netting with no pvc coating, the wire diameter ranges from 2.0mm to 4.0mm.For those PVC coated hexagonal wire netting, the outside diameter ranges from 3.0mm to 4.0mm. The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.



Specification:

Opening(mm)

Wire diameter (mm)

Wire Diameter (PVC Coated)/ Inner/Outside(mm)

Size(m)

60x80

2.0-2.8

2.0/3.0-2.5/3.5

1x1x0.3  1x1x0.5
2x1x0.3  2x1x0.5
2x1x1    4x2x1
6x2x0.3  6x2x1
As your request

80x100

2.0-3.2

2.0/3.0-2.8/3.8

80x120

2.0-3.2

2.0/3.0-2.8/3.8

100x120

2.0-3.4

2.0/3.0-2.8/3.8

100x150

2.0-3.4

2.0/3.0-2.8/3.8

120x150

2.0-4.0

2.0/3.0-3.0/4.0

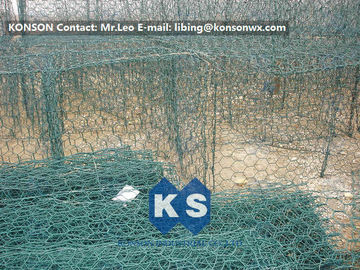

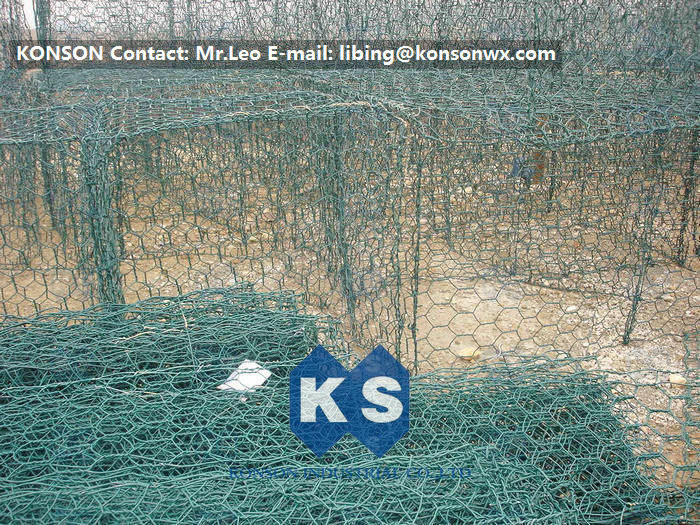

The project is in Jiangsu, China.
