25r / Min Double Twist Hexagonal Wire Netting Machine Wire Diameter 1.6-4.0mm

25r / Min Double Twist Hexagonal Wire Netting Machine Wire Diameter 1.6-4.0mm
25r / Min Double Twist Hexagonal Wire Netting Machine Wire Diameter 1.6-4.0mm 25r / Min Double Twist Hexagonal Wire Netting Machine Wire Diameter 1.6-4.0mm

Large Image :  25r / Min Double Twist Hexagonal Wire Netting Machine Wire Diameter 1.6-4.0mm

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Konson
Certification: CE, ISO9001, SGS, ASTMA, EN, BS standard.
Model Number: KS100120-4.0
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Discuss in mail
Packaging Details: One 40'Open Top Container, wooden pallet, as your design
Delivery Time: within 30 days in receiving prepayment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas Application: Gabion Wire Mesh,gabion Cage
Color: Customer's Requirement Type: Fully Automatic
Name: Gabion Mesh Machine Usage: Automatic Control Operation
High Light:

hexagonal wire mesh machine

,

hexagonal wire machine



Double Twist Hexagonal Wire Netting Machine Wire Diameter 1.6-4.0mm 25r/Min

Features:

1. One set of main machine can only produceone mesh size.
2. One set of main machine can make severalwire diameters.
3. You can weave two or three net with thesame machine.
4. Adopt the principle of clockwise and counterclockwise twisting;no need to makeiron wire spring form to increase productivity



Hexagonal Wire Netting Machine
1. Model: KS80100-4.0
2. Mesh size: 80x100mm
3. Twist: Double twist
4. Wire diameter: 1.6-4.0mm
5. PVC wire diameter: 3.0-5.5mm
6. Max. width: 4300mm
7. Spindle Speed:25r/min
8. Theoretic output: 3.5m/min
9. Motor power: 22.0kw
10. Weight: 15MT
11. Dimensions: 8100mm x 1500mm x 2180mm.


Specification

MODEL MESH SIZE MAX.WIRE DIA. MAX WIDTH PRODUCING RATE
KS6080-2.4 60X80
mm
3.0mm 2400mm >3.3 m/min
KS6080-3.2 3.5mm 3200mm
KS6080-4.0 3.5mm 4300mm
KS80100-2.4 80X100
mm
3.5mm 2400mm >3.5 m/min
KS80100-3.2 3.5mm 3200mm
KS80100-4.0 4.0mm 4300mm
KS100120-2.4 100X120
mm
3.5mm 2400mm >3.5 m/min
KS100120-3.2 3.5mm 3200mm
KS100120-4.0 4.0mm 4300mm
KS120150-2.4 120X150
mm
4.0mm 2400mm >3.8 m/min
KS120150-3.2 4.0mm 3200mm
KS120150-4.0 4.0mm

4300mm



OPERATIONS
Hexagonal Wire Netting Machine has a circular pinion holder on the front and rear of the machine.

The wires which are fed from the bobbins and also from the spiral coil (prepared in spiral coiling machine) placed on the front and rear rack of the machine produces the netting.

The net is pulled out by the take-up roller with stands on the surface of the machine and wound automatically on the winding roller.

When the length of netting reaches the predetermined length, the same is cut and removed from the roller.

The complete operation is then repeated.


Description
1. PLC + Touch screen, easy operation.
2. Servo motor transmission, running fast, shock-resistance, smooth running, low noise, much better than mechanical transmission.
3. Inching / Single-step control button.
4. Grid counter + alarm to stop machine (when wire/ mesh broken, or preset numbers into zero).
5. Automatically wind up mesh into rolls.
6. Automatic central lubrication system to reduce machine damages.
7. The machine can weave several mesh rolls at same time for different mesh width.

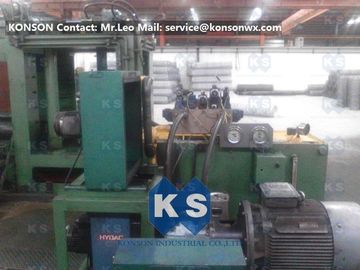

25r / Min Double Twist Hexagonal Wire Netting Machine Wire Diameter 1.6-4.0mm 0
KS series machine has the feature of rational design, simple structure, smooth running, excellent performance, reliable operation and convenient maintenance.


Advantages:
A1. CE certificate.
A2. QC system & timely delivery.
A3. New drive mode.
A4. Automatic oil system.
A5. Overload protect clutch.
A6. High-efficiency: theoretic output = 3.5m/min.
A7. Turbine protection system (Option).
A8. Infrared ray safety (Option).
A9. Automatic stop system (Option).
A10. All of the core parts of machines are processed by our own factory, so the quality can be ensured.
A11. KONSON offer better after-sale service. We can provide 12 months guarantee for all the equipments, we will arrange our engineer to install the machines in your factory and teach your workers how to produce, we will also send accessories and spare parts without any cost.

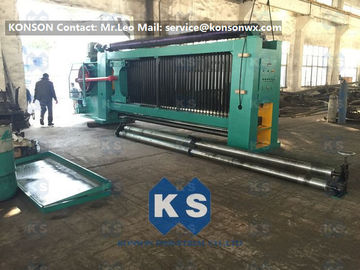

25r / Min Double Twist Hexagonal Wire Netting Machine Wire Diameter 1.6-4.0mm 1
