| Product Name: | Hexagonal Wire Netting Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Color: | As You Required | Working Type: | Automatic |
| Material: | Galvanized Iron Wire,Low-Carbon Iron Wire | Feature: | Higher Efficiency |
| Standard Machine: | Wire Tension Device ... | Winding Machine: | 1 Set |
| PVC Coating Line: | 1 Set Optional | Type: | Gabion Mesh |
| High Light: | 1.8mm gabion mesh machine line,fencing gabion mesh machine line,1.8mm gabion mesh machine |
||
Automatic Chicken Mesh Making Machine , High Stability Gabion Box Machine

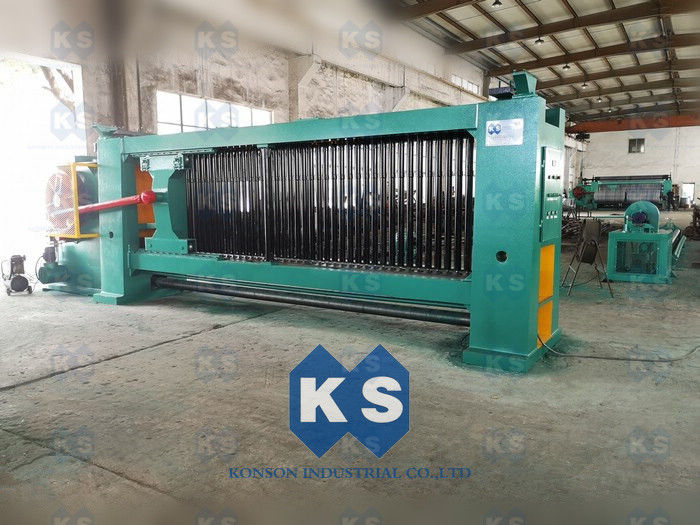

Gabion mesh machine's main pictures
Hole size: 60*80mm, 80*100mm, 100*120mm 120*150mm
Galvanized wire diameter: 1.8-4.0mm
Pvc coated wire diameter: 2.8-5.0mm
Mesh width: 2300mm,3300mm, 4300,5300mm
Main shaft ratary speed: 25
Twisting(mesh/min): 25/165
Mesh width 2300mm machine weight: 13T
Mesh width 3300mm machine weight: 14T
Mesh width 4300mm machine weight: 15T
Usage
Widely used for fencing,residential and landscape protection
It is also good material which is used to make stone wire mesh cages,which are widely used to protect and support the seawall,hillsides,road and bridge,reservoirs and other civil engineering.
Main Features
1. Wire feeding from wire coilers automatically, high production.
2. Schneider/Siemens electric components+ touch screen.
3. Double driving blocks, high speed and smooth running.
4. New welding cross beam, high stability.
5. Weaving one net or several nets at the same time.
6. Complete production line of gabion mesh machine.
Gabion box machine production line
The gabion box is made of pieces of hexagonal wire netting ,which is mainly used as building material,it can be used in resevior for closure ,and also serves as highway guard rail netting , railway guard rail netting , greeguard rail netting,side hill mesh case,flood fighting mesh case,dike dam guard rail netting,zoo guard rail netting,mine tunnel supporting mesh,grass land mesh ,etc.
Gabion box machine Quick Details:
The company KONSON, certified in accordance to the ISO9001:2008, GB/T 19001-2008.
It is a company specializing in the manufacture and export kinds of Hexagonal Wire Netting, Hexagonal machine and production line.
The machine strict with CE certification, working automatic and higher efficiency.it is the leader in the technological area.
KS Series Production Line
| NO. | NAME | QTY |
| Standard Machines | ||
| 1 | Main netting machine(KS Series) | 1 set |
| 2 | Winding machine | 1 set |
| 3 | Wire tension device | 1 set |
| 4 | Spiral coiling machine | 1 set |
| Optional Machines | ||
| 5 | The packing machine | 1 set |
| 6 | Wire spools | 1 set |
| 7 | Work platform | 1 set |
| 8 | Netting straightening machine | 1 set |
| 9 | Netting cutting machine | 1 set |
| 10 | Wrapped edge machine | 1 set |
| 11 | Selvedge cutting machine | 1 set |
| 12 | PVC coating Line | 1 set |
Gabion Production Line Application
1. It is widely used in petroleum, construction, farming, chemical industry, heating pipes and other pipes parcel wire mesh.
2. It can be used to make stone wire mesh cages, which are widely used to protect and support the seawall, hillsides, road and bridge
Capacity of hexagonal wire mesh machine
Also called gabion mesh machine
Hexagonal wire mesh machine is professional equipment to produce hexagonal wire mesh
This machine adopts PLC automatic control,which have smooth operation,low noise and high effficiency charactersics
Wire diameter,mesh size and width are adjustable
