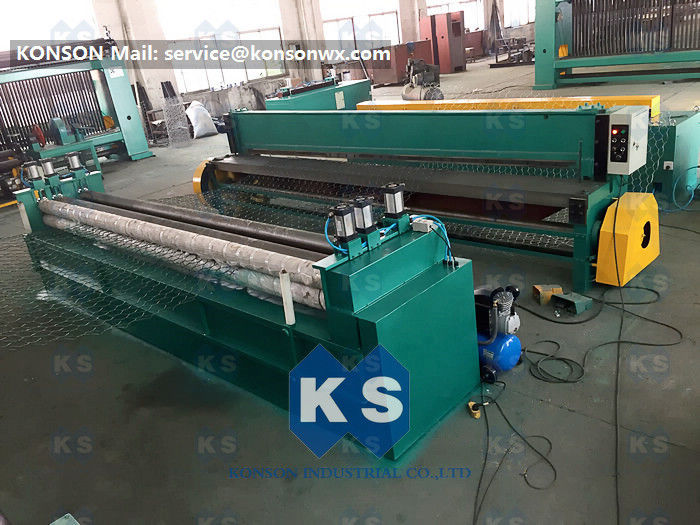

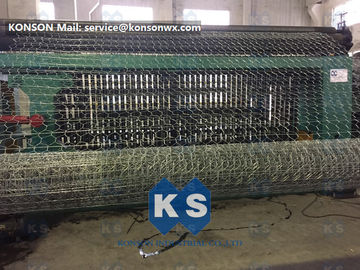

Auto Gabion Machine Rockfall Netting System Double Twist Motor Power 22.0kw

Auto Gabion Machine Rockfall Netting System Double Twist Motor Power 22.0kw
Auto Gabion Machine Rockfall Netting System Double Twist Motor Power 22.0kw Auto Gabion Machine Rockfall Netting System Double Twist Motor Power 22.0kw

Large Image :  Auto Gabion Machine Rockfall Netting System Double Twist Motor Power 22.0kw

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Konson
Certification: CE, ISO9001, SGS, ASTMA, EN, BS standard.
Model Number: KS100120-4.0
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Discuss in mail
Packaging Details: One 40'Open Top Container, wooden pallet, as your design
Delivery Time: within 30 days in receiving prepayment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
System: PLC Control System Working Width: 4300mm
Color: Customer Design Mesh Size: 100x120mm
Product Name: Gabion Machine Twist: Double
High Light:

gabion mesh machine

,

wire mesh machine





Automatic Higher Efficiency Gabion Machine Modular Gabions for Rockfall Netting System



Gabion Machine Introduction

Gabion boxes are made of triple twist hexagonal woven mesh fabric. Gabions stand out as the simple, efficient and economical solution, as the cages are simply filled with natural stone and also proven as environmentally friendly.



The Konson series hexagonal wire netting machine includes four main standard parts: Main netting machine, winding machine, wire tension device and spiral coiling machine, it can produce gabions of various widths and mesh sizes.



The standard machines of production line: Main netting machine, winding machine, wire tension device, spiral coiling machine. We can also supply the complete production line, you may choose the optional machines according to your demand.

Gabion Mesh Machine:

1. Model: KS80100-4.0
2. Mesh size: 80x100mm
3. Twist: Double twist
4. Wire diameter: 1.6-4.0mm
5. PVC wire diameter: 3.0-5.5mm
6. Max. width: 4300mm
7. Spindle Speed:25r/min
8. Theoretic output: 3.5m/min
9. Motor power: 22.0kw
10. Weight: 15MT
11. Dimensions: 8100mm x 1500mm x 2180mm

MODEL MESH SIZE MAX.WIRE DIA. MAX WIDTH PRODUCING RATE
KS6080-2.4

60X80

mm

3.0mm 2400mm >3.3 m/min
KS6080-3.2 3.5mm 3200mm
KS6080-4.0 3.5mm 4300mm
KS80100-2.4

80X100

mm

3.5mm 2400mm >3.5 m/min
KS80100-3.2 3.5mm 3200mm
KS80100-4.0 4.0mm 4300mm
KS100120-2.4

100X120

mm

3.5mm 2400mm >3.5 m/min
KS100120-3.2 3.5mm 3200mm
KS100120-4.0 4.0mm 4300mm
KS120150-2.4

120X150

mm

4.0mm 2400mm >3.8 m/min
KS120150-3.2 4.0mm 3200mm
KS120150-4.0 4.0mm 4300mm





Konson brand gabion machine refers to the machine for making of hexagonal wire netting, it is also known as heavy type hexagonal wire netting machine.  Our machine is specially used to produce the large size and heavy duty hexagonal (galvanized, galfan & PVC wire) wire meshes for the fence and the stone gabions usage. It has several models for different sizes of meshes and the maximum netting width is up to 4.3 meters. We can also supply the complete production line for your whole netting workshop.


Installation and service:

We can dispatch our engineers to your factory for the installation of the machine and the training. About the detailed information of after-sales service, you can contact with our sales personnel.
