High Light: | hexagonal wire netting machine,wire mesh manufacturing machine |
---|
Customized Automatic Gabion Mesh Machine Hexagonal Wire Gabion Netting Production Line
1. Introduction:
Our company KONSON is famous manufacturer of gabion machine, gabion production line and gabion boxes in China. KS series production line is designed to make gabion mesh of various widths. We export the machine and provide the Installation Services.
Konson brand gabion mesh machine is one kind of special equipment for twisting metal wire hexagonal mesh with big wire, large mesh and wide breadth. The product has widely function, with its good corrosion resistance and oxidation resistance, it serves well as strengthening, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, chemical, breeding, garden and food processing industries.
KS series machine is composed of main body, netting roller, turbo reducer and topmost roller. The main parts, such as drag plate, rack and half-gear are all made of special material with high quality and processing by advanced technology. It has the feature of rational design, simple structure, smooth running, excellent performance, reliable operation and convenient maintenance.
2. KS Series Production Line:
Standard Machines:
1. Main netting machine
2. Winding machine
3. Wire tension device
4. Spiral coiling machine
Optional Machines:
5. Hydraulic packing machine
6. Wire spools
7. Work platform
8. Netting straightening machine
9. Netting cutting machine
10. Wrapped edge machine
11. Selvedge cutting machine
12. PVC coating line.
NOTE:
No.1-No.4 are standard machines, No.5-No.12 are auxiliary machine to improve working efficiency. Please choose the equipments you want to order.

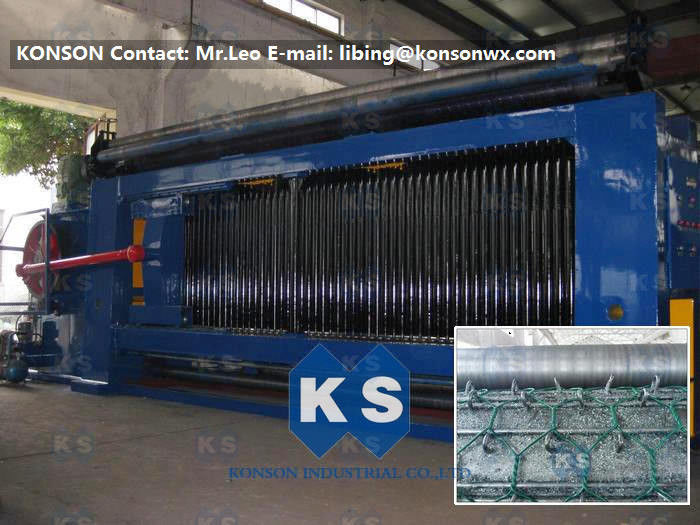

3. Main netting Machine:
1. Model: KS80100-4.0
2. Mesh size: 80x100mm
3. Twist: Double twist
4. Wire diameter: 1.6-4.0mm
5. PVC wire diameter: 3.0-5.5mm
6. Max. width: 4300mm
7. Spindle Speed:25r/min
8. Theoretic output: 3.5m/min
9. Motor power: 22.0kw
10. Weight: 15MT
11. Dimensions: 8100mm x 1500mm x 2180mm.
Five twist machine:
4. Advantages:
A1. CE certificate.
A2. QC system & timely delivery.
A3. New drive mode.
A4. Automatic oil system.
A5. Overload protect clutch.
A6. High-efficiency: theoretic output = 3.5m/min.
A7. Turbine protection system (Option).
A8. Infrared ray safety (Option).
A9. Automatic stop system (Option).
A10. All of the core parts of machines are processed by our own factory, so the quality can be ensured.
A11. KONSON offer better after-sale service. We can provide 12 months guarantee for all the equipments, we will arrange our engineer to install the machines in your factory and teach your workers how to produce, we will also send accessories and spare parts without any cost.
5. Optional machines:
7. Standard spare parts and accessories:
8. Engineering projects of finished goods
9. About Konson:
Konson Industrial Company Limited, with more than 15 years production experience, becomes one of the leading manufacturers of the gabions, mattress and gabion production line in China. We would like to offer good service and excellent products to customers wholeheartedly!
