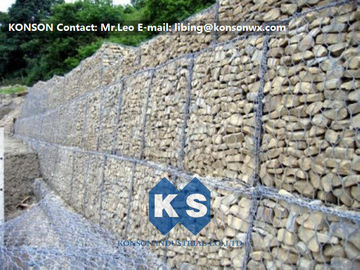

Gabion Retaining Wall 3.0mm to 4.5mm Diamter PVC Coated Stainless Steel Galvanized Wire
pvc gabion box which is the gabion woven by the hexagonal mesh, the diameter thickness depends on the mesh size, the diamter is between 2.0mm to 4.0mm if the material is zinc coated, while the diamter will be 3.0mm to 4.5mm if the material is PVC-coated wire, the selvage wire diamter usually is one gauge thicker than the body wire diamter.
Usage:
1.Controlling and leading the river and flood
2.Flood discharge and lead flow
3.rock fall defending
4.preventing the water and soil lost
5.protecting the bridge
6.reinforce fabric
7.seashore recovery project
8.seaport project
9.block wall
10.defending the road.
PVC gabion box specification:
mesh(mm) |
wire(mm) |
wire(PVC)/inner/outside(mm) |
biggest width (mm) |
60X80 |
2.0-2.8 |
2.0/3.0-2.5/3.5 |
4300 |
80X100 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
4300 |
80X120 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
4300 |
100X120 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
4300 |
100X150 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
4300 |
120X150 |
2.0-4.0 |
2.0/3.0-3.0/4.0 |
4300 |
