Galfan Hexagonal Wire Mesh Woven Steel Gabion Boxes With ASTM A975-97 Standard

galfan gabion/galvanized gabion
1.Standard:ASTM A975-97
2.Galvanized at least 250g/m2
3.Zn-5% or10%Al alloy
4.Fast delivery.


galfan gabion/galvanized gabion

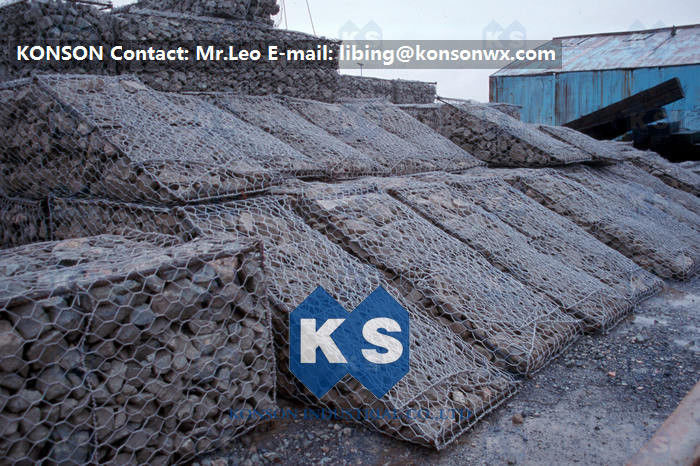

Gabions is made of double twisted hexagonal woven steel wire mesh, as per ASTM A975-97
Gabions are filled with stones at the project site to form flexible, permeable, monolithic structures such as retaining walls, channel linings, and weirs for erosion control projects. The steel wire used in the manufacture of the gabion is heavily
Galfan (zinc-5% aluminum-mischmetal [Zn-5 Al-MM] alloy) coated soft temper steel. A PVC coating is then applied to provide additional protection for use in polluted, contaminated or aggressive environments: in salt, fresh water, acid soil or wherever the risk of corrosion is present. The PVC coating has a nominal thickness of 0.02 in. (0.50 mm).
The gabion is divided into cells by diaphragms positioned at approximately 3 ft (0.9 m) centers. To reinforce the structure, all mesh panel edges are selvedged with a wire having a greater diameter.

Engineering projects:

Hexagonal Wire Netting/ Hexagonal Wire Mesh/ Gabion Boxes/ Gabion Baskets/ Stone Cages/ Welded Wire Mesh.

Gabion specifications.





Applications:
Control and guide of water or flood
Preventing of rock breaking
Rock fall protection
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area
Port project
Keep off dust wall

Roadway protection.
