High Light: | gabion retaining walls,gabion basket retaining wall |
---|

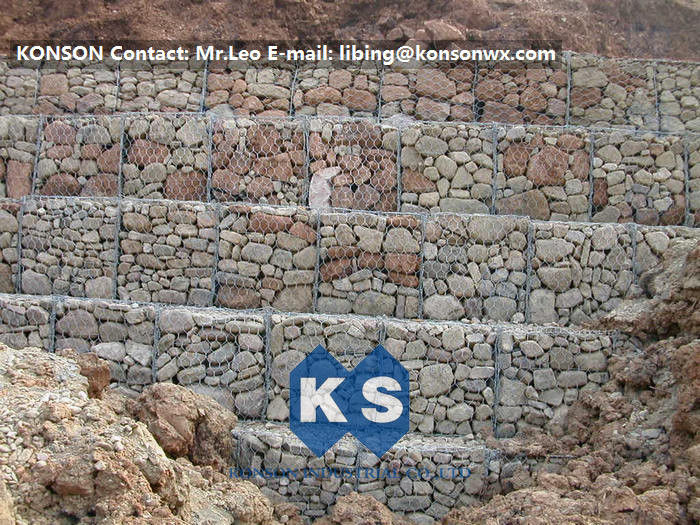

Gabion Retaining Wall Hexagonal Wire Mesh Polyethylene PE Coated Gabion Wire
PE coated gabion is wire made of hexagonal wire netting coated polyethylene.Wire diameter varies with
the hexagonal nettings.For hexagonal wire netting with no pe coating, the wire diameter ranges from 2.0mm
to 4.0mm.For those pe coated hexagonal wire netting, the outside diameter ranges from 3.0mm to 5.0mm.
Gabion also can be manufactured in the following material:
1.Electro galvanized Gabion box
Zinc coating: 220g/m2, 260g/m2, 275g/m2, 290g/m2
2.Hot dip galvanized Gabion Box
3.Galfan Gabion Box (95% Zinc +5% Al )
4.PVC/PE coated Gabion Box
PE coated gabion applications:
1.Control and guide of water or flood
2.Flood bank or guiding bank
3.Preventing of rock breaking
4.Water and soil protection
5.Bridge protection
6.Strengthening structure of soil
7.Protection engineering of seaside area.
Gabions sizes:2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m,
4m x 1m x 0.5m and customize design is available.
Wire dia :2.2mm, 2.7mm, 3.4mm, 3.9mm and etc.
Hole Size:60x80mm, 80x100mm, 100x120mm, 120x150mm.
