Product Details:
Payment & Shipping Terms:
|
Product Name: | Gabion Box Machine | MOTOR POWER: | 19 Kw |
---|---|---|---|
Application: | Fence Mesh | Material: | Galvanized Iron Wire |
Feature: | Easily Assembled | Hole Shape: | Hexagonal,Square |
High Light: | wire mesh machines,wire mesh welding machine |
High Efficiency Gabion Box Machine with PLC Automatic Control Five Twist
Gabion box welding machine is used to make welded mesh panels, then connect by springs to form welded gabion box. The gabion boxes are used widely in slope protection, foundation pit supporting, mountain rock holding, river and dams scour protection.
Gabion Box Machine Application
1. Heavy-duty hexagonal wire netting machine is also called Gabion mesh machine.
2. The gabion box is made of pieces of hexagonal wire netting,which is mainly uesd as building material
3. it can be used in resevior for closure,and also seaves as highway guard rail netting,railway guard rail netting,green guard rail netting,side hill mesh case,flood fighting mesh case,dike dam guard rail netting,zoo guard rail netting,mine tunnel supporting mesh,grass land mesh,etc.
Gabion Box Machine Brief Introduction
Gabion Box Machine which is ideal for creating different types of boxes in diverse shapes and sizes. It is used in various packaging industries due to its high performance efficiency and timely execution. In addition to this, the said Gabion Box Machine is robust in construction and provides simple operations, smooth functioning, longer functional life, high strength etc.
This machine requires less power consumption and low maintenance. It is known for its anti-corrosion nature, dimensional accuracy and seamless finishing. You can avail this in different specifications and designs as per the requirement.
Gabion Box Machine Specification:
Gabion machine is designed to produce hexagonal wire mesh with galvanized low carbon steel wire, suitable for structural, heat insulation, protective, and fencing applications. Most of gabion mesh machines are of horizontal design, ensuring smooth running and high productivity.
MODEL | MESH SIZE | MAX.WIRE DIA. | MAX WIDTH | PRODUCING RATE | MOTOR POWER |
KS6080-2.4 | 60X80mm | 3.0mm | 2400mm | >4.8 m/min | 15 kw |
KS6080-3.2 | 2.8mm | 3200mm | 18.5 kw | ||
KS6080-4.0 | 2.8mm | 4000mm | 22 kw | ||
KS80100-2.4 | 80X100mm | 3.0mm | 2400mm | >4.9 m/min | 17 kw |
KS80100-3.2 | 3.0mm | 3200mm | 17 kw | ||
KS80100-4.0 | 3.0mm | 4000mm | 18.5 kw | ||
KS80100-4.3 | 3.4mm | 4300mm | 19 kw | ||
KS100120-2.4 | 100X120mm | 3.2mm | 2400mm | >4.3 m/min | 19 kw |
KS100120-3.2 | 3.2mm | 3200mm | 19 kw | ||
KS100120-4.0 | 3.0mm | 4000mm | 19 kw | ||
KS120150-2.4 | 120X150mm | 4.0mm | 2400mm | >4.4 m/min | 17 kw |
KS120150-3.2 | 4.0mm | 3200mm | 19 kw | ||
KS120150-4.0 | 3.5mm | 4000mm | 19 kw |
Range of supply
Main netting machine | 1 Set |
Winding machine | 1 Set |
Wire tension device | 1 Set |
Air compressor | 1 Set |

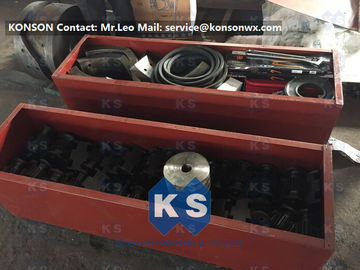

Standard spareparts | 1 Set |
Lubrication pump | 1 Set |

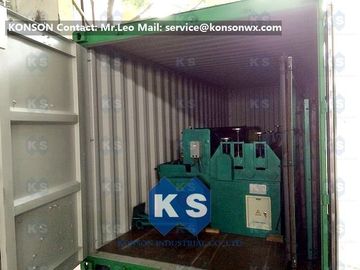

The model in picture is automatic gabion mesh machine
We can manufacture especial size as your request, User satisfaction is our unremitting goal!
