High Speed 25r/Min 80x100mm Mesh Gabion Machine

High Speed 25r/Min 80x100mm Mesh Gabion Machine
High Speed 25r/Min 80x100mm Mesh Gabion Machine High Speed 25r/Min 80x100mm Mesh Gabion Machine

Large Image :  High Speed 25r/Min 80x100mm Mesh Gabion Machine

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Konson
Certification: CE, ISO9001, SGS test, Chinese Patent
Model Number: KS80100-4.0
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Competitive price
Packaging Details: One 40' Open Top Container, wooden pallet, as your design
Delivery Time: within 30 days in receiving prepayment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
High Light:

80x100mm Mesh Gabion Machine


25r/min Gabion Machine


80x100mm gabion mesh machine line



Wire Mesh Production Line 4300mm High Speed Automated Gabion Machine Hexagonal



1. Introduction


Konson brand Gabion Machine is one kind of special equipment for twisting metal wire hexagonal mesh with big wire, large mesh and wide breadth. The product has widely function, with its good corrosion resistance and oxidation resistance, it serves well as strengthening, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, chemical, breeding, garden and food processing industries.



We keep developing new machines and export machines to foreigner countries.


KS Gabion Machine:

1. Model: KS80100-4.0

2. Mesh size: 80x100mm

3. Twist: Double twist

4. Wire diameter: 1.6-4.0mm

5. PVC wire diameter: 3.0-5.5mm

6. The Max. width: 4300mm

7. Spindle Speed:25r/min

8. Theoretic output: 3.5m/min

9. Motor power: 22.0kw

10. Weight: 15MT

11. Dimensions: 8100mm x 1500mm x 2180mm





A1. CE certificate.
A2. QC system & timely delivery.
A3. New drive mode.
A4. Automatic oil system.
A5. Overload protect clutch.
A6. High-efficiency: theoretic output = 3.5m/min.
A7. Turbine protection system (Option).
A8. Infrared ray safety (Option).
A9. Automatic stop system (Option).
A10. All of the core parts of machines are processed by our own factory, so the quality can be ensured.
A11. KONSON offer better after-sale service. We can provide 12 months guarantee for all the equipments, we will arrange our engineer to install the machines in your factory and teach your workers how to produce, we will also send accessories and spare parts without any cost.

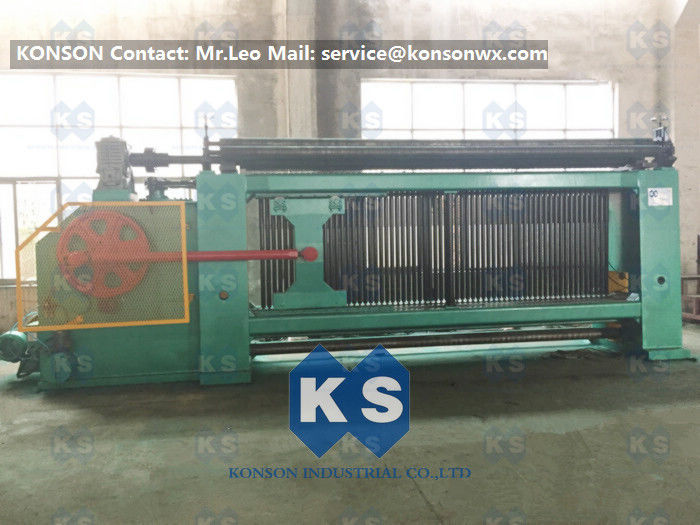

High Speed 25r/Min 80x100mm Mesh Gabion Machine 0

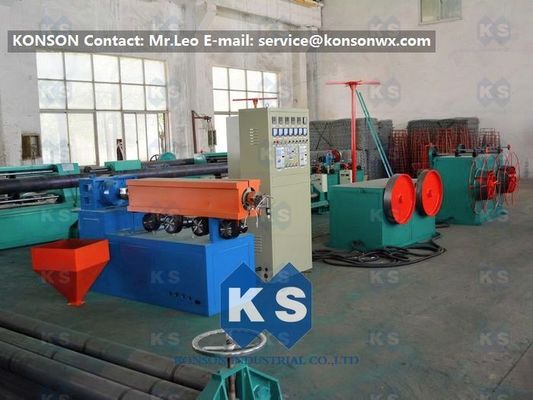

High Speed 25r/Min 80x100mm Mesh Gabion Machine 1
