Product Details:
Payment & Shipping Terms:
|
Product Name: | Gabion Machine | Theoretic Output: | 160-500 M/hr |
---|---|---|---|
Width: | 4300mm Max | Wire Diameter: | 2.0-4.0mm |
System: | PLC Control System | Speed: | 225m/h |
High Light: | gabion mesh machine,wire mesh machine |
Producing Rate 3.5 M / Min Gabion Making Machine Auto Straightening Cutting System
Customer designFully Heavy Duty Gabion Machine With Automatic Straightening And Cutting System CE Certifications

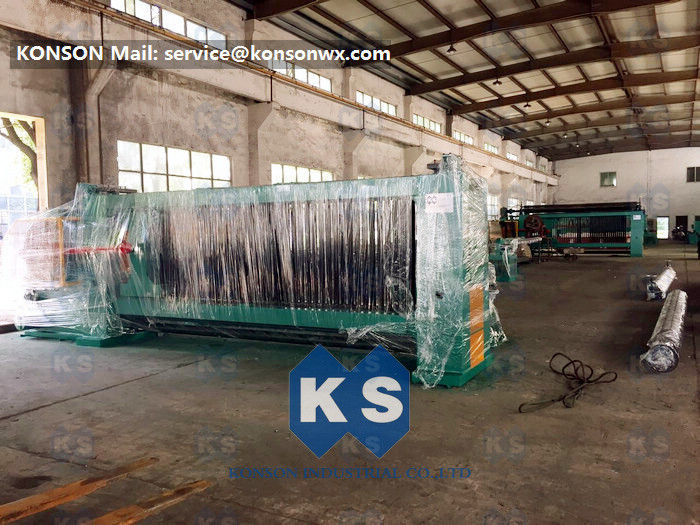

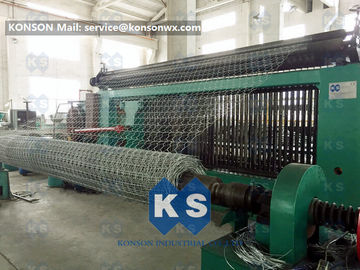

Gabion Machine KS80100-4.0
Gabion Machine strict with CE certification has been exported to more than 40 countries before. It is our honor to introduce our Gabion machine to you.
It can provide gabion mesh products for domestic companies for various kinds of construction items.The gabion products are commonly used to drain water course to protect and support roads, railroads, airports and residential areas, for coastal protection etc.The gabions can be build retaining walls, river bank protections, weirs, etc.At present our company possesses four assembly lines of heavy series hexagonal wires nets (gabion boxes mattresses).
1. Mesh size: 80x100
2. Width: 4300mm max
3. Wire diameter: 2.0-4.0mm
The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.
We can manufacture gabion machine according to customer request.
The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.
Installation and service:
We can dispatch our engineers to your factory for the installation of the machine and the training. About the detailed information of after-sales service, you can contact with our sales personnel.
