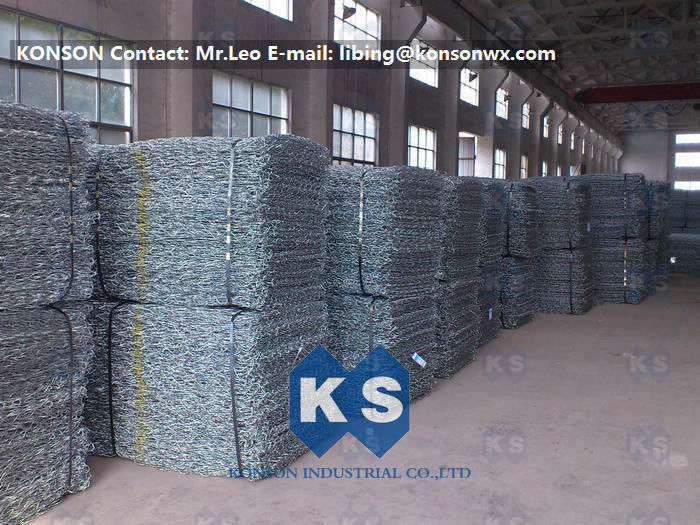

Galvanized Wire Gabion Basket Protection Engineering Stone Cages
1. Konson Galvanized Gabion Basket:
Gabion Basket are cages, cylinders, or boxes filled with soil or sand that are used in civil engineering, road building, and military applications. For erosion control caged riprap is used.For dams or foundation construction, cylindrical metal structures are used.
Konson Gabion box by CE certification and ISO9001, SGS, ASTMA97597, EN 10223 standard within SGS. We are certain that the quality is better than other suppliers and can meet you request.
Gabion boxes , uniformly partitioned, are wire made containers of various sizes. It is interconnected with other similar containers and filled with stones at the site of use to form flexible, permeable, monolithic structures such as retaining walls, sea walls, channel linings, revetments and weirs for earth retention. In order to strengthen the boxes, all the edges of structure are selvedged with wire of greater diameter.
2. Specification:
Opening(mm) |
Wire diameter (mm) |
Wire Diameter (PVC Coated)/ Inner/Outside(mm) |
Size(m) |
60x80 |
2.0-2.8 |
2.0/3.0-2.5/3.5 |
1x1x0.3 1x1x0.5 |
80x100 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
|
80x120 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
|
100x120 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
|
100x150 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
|
120x150 |
2.0-4.0 |
2.0/3.0-3.0/4.0 |
a. Control the flood or guide the water
b. Preventing rocks or stones from breaking
c. Protect the falling of rocks
d. Water and soil protection
e. Bridge protection
f. Strengthening the structure of soil
g. Protect the engineering of seaside area
h. Port project
i. Keep off dust wall
j. Roadway protection.
