Highlight: | hexagonal mesh,galvanised wire mesh |
---|
Stainless Steel Gabion Mesh Plastic Coated Galvanized Wire Mesh

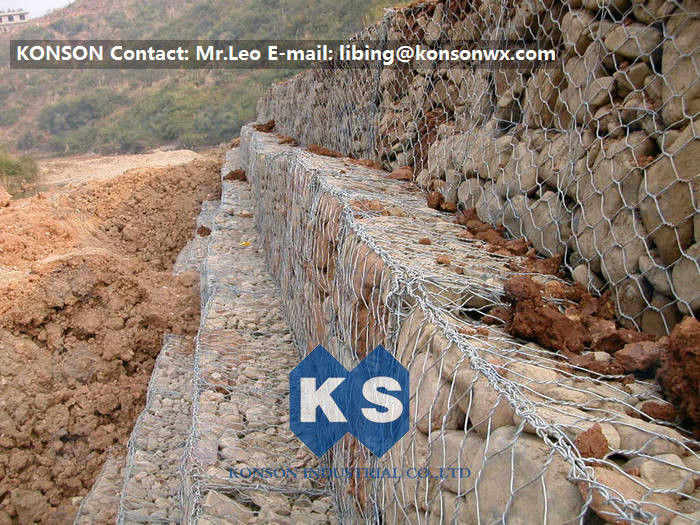

The is filled with stones at the project site to form flexible and permeable, monolithic structures such as river bank protection and channel linings for erosion control.We can
manufacture different model as client's demand.
Retaining walls of all kinds
Embankment constructions
Bridge abutments
As a replacement for concrete gravity walls
Road and rail noise barriers
Soil pressure absorption systems
es size:
Standard sizes 6x2x0.17m 6x2x0.23m 6x2x0.30m 3x2x0.17m 3x2x0.23m 3x2x0.30m
Mesh size(mm):60x80mm, 80x100mm, 100x120mm, 120x150mm
Wire diameter:2.2mm/3.2mm, 2.4mm/3.4mm, 2mm/3.0mm
es specification:
Long(m) |
Width(m) |
High(m) |
Mesh type(mm) |
3m |
2m |
0.15-0.20-0.25 |
80x100 |
4m |
2m |
0.15-0.20-0.25 |
80x100 |
5m |
2m |
0.15-0.20-0.25 |
80x100 |
6m |
2m |
0.15-0.20-0.25 |
80x100 |
3m |
2m |
0.17-0.23-0.30 |
60x80 |
4m |
2m |
0.17-0.23-0.30 |
60x80 |
5m |
2m |
0.17-0.23-0.30 |
60x80 |
6m |
2m |
0.17-0.23-0.30 |
60x80 |
All sizes and dimensions are nominal. Tolerances of ± 3% of the width, length,
and ±2.5 cm of the height shall be permitted
