High Light: | gabion mattress,galvanized gabion |
---|
Galvanized Wire Mesh Wire Mesh Fence Hexagonal Mesh PVC Coated Galvanized Gabion
PVC coated galvanized gabion is the gabion which are woven by the hexagonal mesh, the diameter thickness depends on the mesh size, the diameter is between 2.0mm to 4.0mm if the material is zinc coated, while the diameter will be 3.0mm to 4.5mm if the material is PVC-coated wire, the selvage wire diameter usually is one gauge thicker than the body wire diameter.
PVC coated galvanized gabion specification:
mesh(mm) |
wire(mm) |
wire(PVC)/inner/outside(mm) |
biggest width (mm) |
60X80 |
2.0-2.8 |
2.0/3.0-2.5/3.5 |
4300 |
80X100 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
4300 |
80X120 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
4300 |
100X120 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
4300 |
100X150 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
4300 |
120X150 |
2.0-4.0 |
2.0/3.0-3.0/4.0 |
4300 |

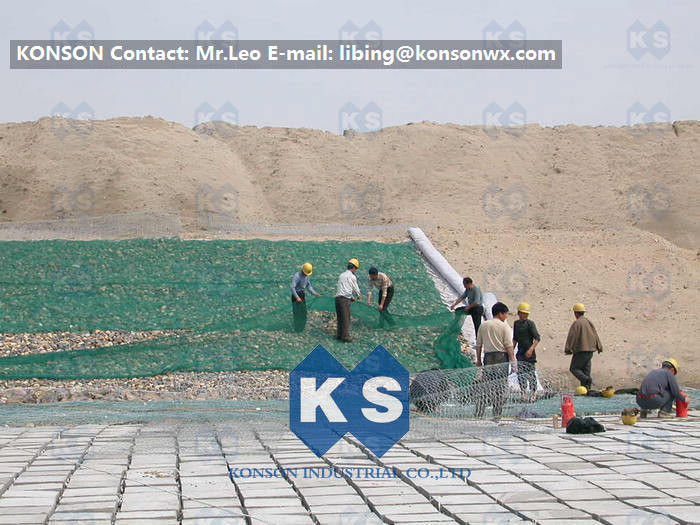

Retaining walls of all kinds
Embankment constructions
Bridge abutments
As a replacement for concrete gravity walls
Road and rail noise barriers
Soil pressure absorption systems
