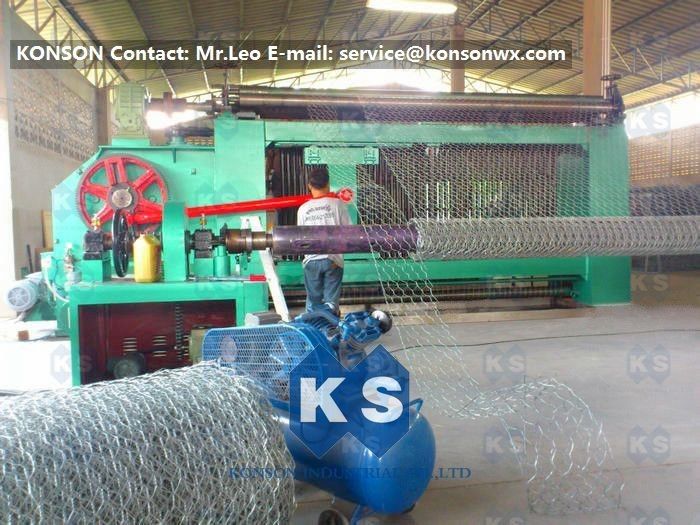

Automatic Gabion Box Machine Making Hexagonal Fence With Automatic Stop System

China Automatic Gabion Box Machine Making Hexagonal Fence With Automatic Stop System supplier

Large Image :  Automatic Gabion Box Machine Making Hexagonal Fence With Automatic Stop System

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Konson
Certification: CE, ISO9001, SGS, ASTMA, EN, BS standard.
Model Number: KS6080-4.0

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Discuss in mail
Packaging Details: One 40'Open Top Container, wooden pallet, as your design
Delivery Time: within 30 days in receiving prepayment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets per Month
Contact Now
Detailed Product Description

Automatic Gabion Box Machine Making Hexagonal Fence With Automatic Stop System





1. Introduction

KS series Gabion Machine is the professional machine to produce inerratic gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. The mesh can be used to produce coop, and is widely used as protect and  sustain bank, hillside, road and bridge, reservoir and other construction project, and it is the good material to prevent or control flood.





Specification:

MODEL

MESH SIZE

MAX.WIRE DIA.

MAX WIDTH

PRODUCING RATE

KS6080-2.4

60X80

mm

3.0mm

2400mm

>3.3 m/min

KS6080-3.2

3.5mm

3200mm

KS6080-4.0

3.5mm

4300mm

KS80100-2.4

80X100

mm

3.5mm

2400mm

>3.5 m/min

KS80100-3.2

3.5mm

3200mm

KS80100-4.0

4.0mm

4300mm

KS100120-2.4

100X120

mm

3.5mm

2400mm

>3.5 m/min

KS100120-3.2

3.5mm

3200mm

KS100120-4.0

4.0mm

4300mm

KS120150-2.4

120X150

mm

4.0mm

2400mm

>3.8 m/min

KS120150-3.2

4.0mm

3200mm

KS120150-4.0

4.0mm

4300mm

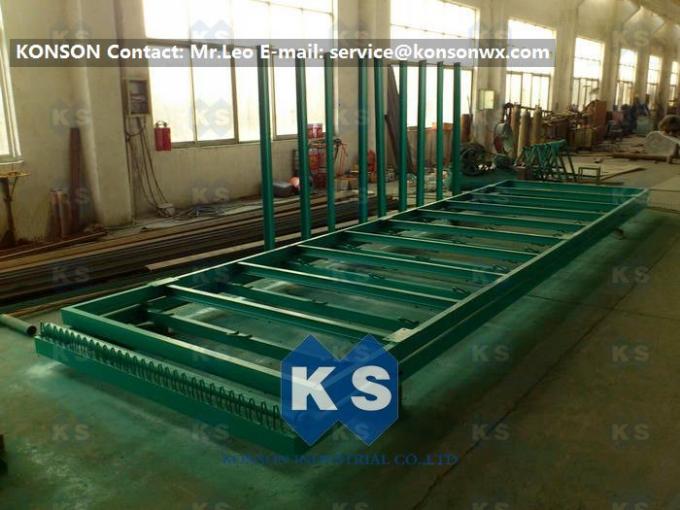

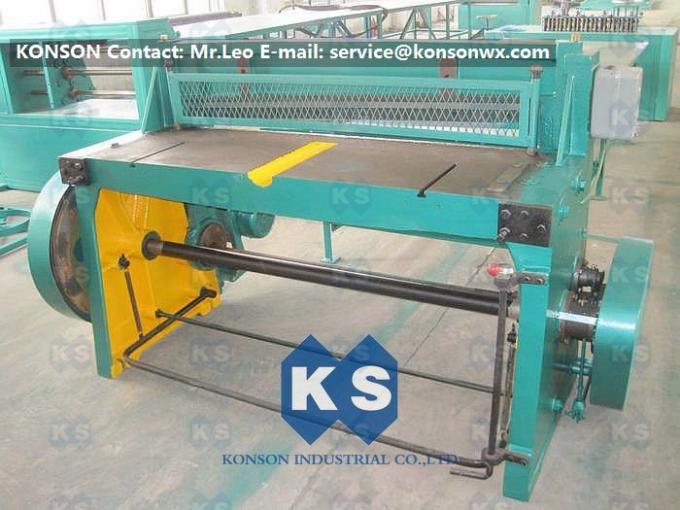

Optional Machines

Automatic Gabion Box Machine Making Hexagonal Fence With Automatic Stop System



Automatic Gabion Box Machine Making Hexagonal Fence With Automatic Stop System
