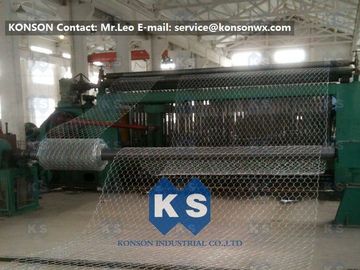

High Efficiency 22kw Hexagonal Gabion Mesh Machine 80x100mm Mesh Size

High Efficiency 22kw Hexagonal Gabion Mesh Machine 80x100mm Mesh Size
High Efficiency 22kw Hexagonal Gabion Mesh Machine 80x100mm Mesh Size

Large Image :  High Efficiency 22kw Hexagonal Gabion Mesh Machine 80x100mm Mesh Size

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Konson
Certification: CE, ISO9001, SGS, ASTMA, EN, BS standard.
Model Number: KS80100-4.0
Color: Blue, Green, Black or as your design
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets or as your request
Price: Discuss in mail
Packaging Details: One 40' Open Top Container, wooden pallet, as your design
Delivery Time: within 30 days after the prepayment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets per Month
Port: Shanghai
Detailed Product Description
High Light:

hexagonal wire mesh machine

,

hexagonal wire mesh

High Efficiency 22kw Hexagonal Gabion Mesh Machine 80x100mm Mesh Size





1. Introduction.



KONSON brand Gabion machine is designed to produce gabion mesh of various widths and mesh sizes.

Konson brand Gabion Machine is one kind of special equipment for twisting metal wire hexagonal mesh with big wire, large mesh and wide breadth. The product has widely function, with its good corrosion resistance and oxidation resistance, it serves well as strengthening, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, chemical, breeding, garden and food processing industries.

High Efficiency 22kw Hexagonal Gabion Mesh Machine 80x100mm Mesh Size 0



2.Specifications:

1. Mesh sizes: 80X100mm

2. Twist model: double twist & three twist

3. Max. netting width: 4300mm

4. Max. galvanized wire dia.: 3.9mm

5. Max PVC wire diameter: 4.9mm

6. Theoretic output: 255m/hr

7. Power: 22Kw

8. Dimensions: 8100 x 1400 x 2400mm

9. Weight: 15MT

10. Automatic oil system

11. Automatic stop system

12. Infrared ray safety system

All of the core parts of machines are processed by our own factory, the quality can be ensured.



MODEL

MESH SIZE

MAX.WIRE DIA.

MAX WIDTH

PRODUCING RATE

KS6080-2.4

60X80

mm

3.0mm

2400mm

>3.3 m/min

KS6080-3.2

3.5mm

3200mm

KS6080-4.0

3.5mm

4300mm

KS80100-2.4

80X100

mm

3.5mm

2400mm

>3.5 m/min

KS80100-3.2

3.5mm

3200mm

KS80100-4.0

4.0mm

4300mm

KS100120-2.4

100X120

mm

3.5mm

2400mm

>3.5 m/min

KS100120-3.2

3.5mm

3200mm

KS100120-4.0

4.0mm

4300mm

KS120150-2.4

120X150

mm

4.0mm

2400mm

>3.8 m/min

KS120150-3.2

4.0mm

3200mm

KS120150-4.0

4.0mm

4300mm
